Week 11 - Prototype of detail

Detail Prototypes and Models

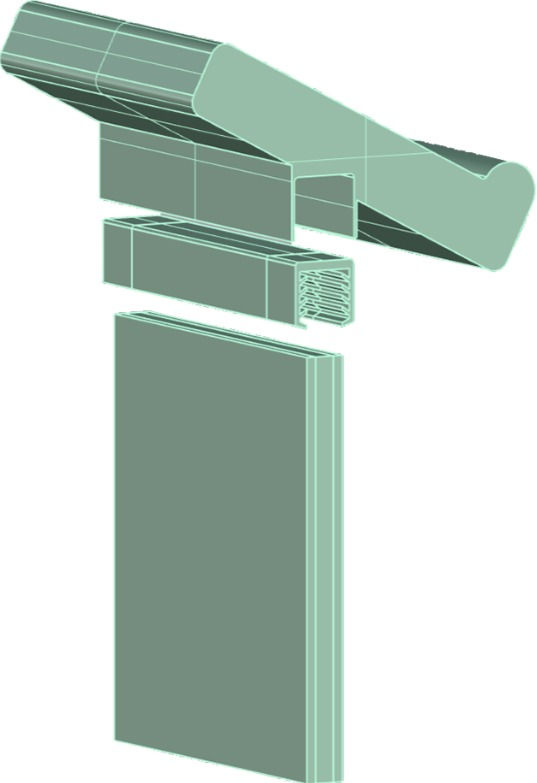

3D Rendered Rhino Model

The initial stage in developing my prototype was designing the handrail. Above, you can see the version of the handrail that I had 3D printed at full scale, along with the metal support. This handrail is designed so that the user can place a book on it, make notes and put their belongings down without them falling.

3D Printed Prototype

After consideration and playing with the product, I realised that the handrail was not up to standard, there was an error, and the end was too small. I redesigned the detail to be more ergonomic and better comply with building regulations by curving the bottom end. The sides of the prototype are flat as I took a section of it, but the start will be over-hanging and curved off.

Final Prototype
